KPP Piston Pumps Datasheet

Please note: if the tables below  do not display correctly on your device and you want to see the specifications ~ turn your phone sideways or open on a desktop computer.

Mechanical
Electrical
Specifications
Downloads
Request Quote
Mechanical
Electrical
Specifications


(1) – See Piston Positional Accuracy term in datasheet

(2) – See Power, Current Draw, and Holding Current terms in datasheet

Downloads

3D models available. Please submit request using our Request Quote form.

Request Quote

The Kinitics Piston Pump (KPP) is a shape memory alloy-based actuator that uses Bundled Wire technology to deliver a precision stroke in a compact package. Displacement and flow control is possible through the addition of a linear sensor while pressure control is possible through the use of a pressure sensor.

Kinitics Piston Pump Features

  • Wide range of compatible fluids
  • Rated pressures up to 100 Bar (1450 psi)
  • Strokes up to 7 mm (0.26″)
  • Displacements up to 8.4 cc (0.5 cu.in.)
  • Flow rates up to 25 LPH (6.6 GPH)
  • Configurable ports
  • Flexible AC and DC power options
  • Flying lead or SJOOW cable hook-up
  • -40⁰ C to 60⁰ C operating range
  • Rod and piston are the only moving parts
  • IP67 Environmental Protection
  • Compatible with ISO 21287 hardware

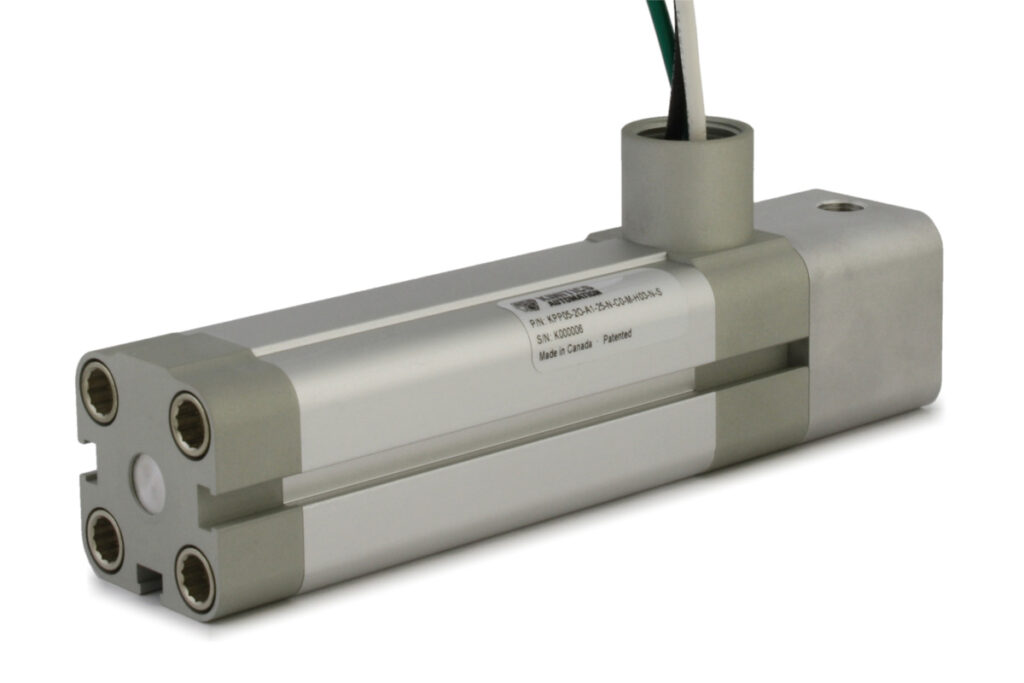

Kinitics Automation Limited KPP Piston Pump Actuator for Flow and pressure control

Accessory Add-ons

  • Wide range of mounting brackets
  • Adjustable home position switch
alt=""

Potential Applications

  • Master cylinder
  • Braking / clutching
  • Metering pump

Product Selection Chart: This chart can be used to configure the Kinitics Piston Pump.

Step 1: Use pressure and volumetric displacement to find the intersection point.

Step 2: Drawing a line horizontally to the right axis will identify the piston bore size and travel modifier.


Step 3: The shaded box that the point lands in, identified in the legend, is used to determine the nominal stroke of the KPP.  For example, if you require a precision pump with 2.5 cc displacement and 5 bar pressure, you would use the above chart to select an actuator with a 25 mm piston bore, a 4 mm nominal stroke and the over-travel modifier. These options would be used to generate the Piston Pump part number in the configurator below.
